Cybersecurity Capstone — VIP Events (Stage 4)

This is Stage 4 of the VIP Events cybersecurity capstone — the test plan for everything I built across Stage 2 and Stage 3. Each test below specifies what’s being validated, how, and what result should come back. Where it matters, I ran negative cases too — confirming access is correctly denied — because a least-privilege design only proves itself when isolation actively blocks out-of-scope access, not just when in-scope access happens to work. Everything was run against the live Entra ID Free-tier tenant, with notes wherever a test would look different under production licensing (P1/P2).

Client app integration and authentication

First up: confirming the VIP Foods app actually authenticates users through Entra ID (SSO), and that it receives each user’s assigned role correctly.

Test	Method	Expected result
SSO authentication	Sign in to the VIP Foods app as a test user (e.g. Liam Carter) via Entra ID	User is redirected to the Entra sign-in page, authenticates, and is returned to the app — no separate credentials required
Role claim delivery	After sign-in, inspect the issued token’s roles claim (decode the token, or review the enterprise app sign-in logs)	The token contains the user’s assigned role value — e.g. Liam’s token includes HandleEquipmentRole
Unassigned user	Attempt access as a user with no role assigned to the app	The token carries no VIP Foods role claim; the app grants no role-specific functionality

Because the app reads the role straight out of the token claim at authorisation time, a passing role-claim test confirms the integration is actually using the custom roles I set up in Stage 3.

User account validation

Next, I confirmed every account actually exists, is configured correctly, and carries accurate attributes — the identity work from Stage 2 checked against the live tenant.

Test	Method	Expected result
Account existence	Review Entra ID → Users → All users	All expected staff accounts are present and enabled
Naming convention	Check each UPN	All follow firstname.lastname@domain consistently
Attribute accuracy	Open each user → Properties; verify department, job title, and manager	Attributes match the user’s role (e.g. Ava Mitchell — department Kitchen, title Chef; Noah Bennett set as Liam Carter’s manager)
Admin separation	Confirm the administrator account is not assigned to any employee security group	Admin identity is isolated from line-of-business groups

This build has no on-premises directory, so there’s no Entra Connect synchronisation to validate — “accurate synchronisation” here just means the attributes are correctly set in the cloud directory. In a hybrid production environment, synchronisation between on-prem AD and Entra ID would additionally be validated via the Entra Connect sync status and provisioning logs.

Application role assignment

From there, I checked that every user is assigned to the correct role, and that access actually reflects that assignment.

Test	Method	Expected result
Assignment accuracy	Review Enterprise applications → VIP Foods → Users and groups	Each user maps to their correct role (e.g. Ava → ChefRole, James → CEORole, Sofia → TempStaffRole)
Positive access	Sign in as each role user and access a function within that role’s scope	Access granted to in-scope functionality
Assignment integrity	Confirm no user holds a role outside their job function	No unexpected or duplicate role assignments

Group/role-based access testing

This is the core of the test plan: validating that role-based access control both grants in-scope access and actively restricts out-of-scope access — proving the least-privilege isolation designed across Stages 1–3, not just assuming it.

Role	Positive test (should succeed)	Negative test (should be denied)
HandleEquipmentRole (Liam)	View/update equipment records	Access kitchen, office, or admin functions; add/retire equipment
ChefRole (Ava)	View/update kitchen data	Access equipment, event, or admin functions; manage kitchen operations
HeadChefRole (Ethan)	Manage kitchen operations	Access equipment or office/admin functions
CateringManagerRole (Mia)	Event/catering planning; view kitchen data	Update kitchen data; access equipment internals or finance
OfficeWorkerRole (Chloe)	Administration and data management	Access operational or kitchen functions
CEORole (James)	Access all functional areas	(No restrictions — validate full access is present)
TempStaffRole (Sofia)	Perform assigned day-of task	Access any function beyond the assigned task

I signed in as each role user, attempted both the in-scope and out-of-scope actions, and checked the result against the expected column. The negative tests are the critical validation here — they prove isolation is enforced, not merely configured. Any out-of-scope action that succeeds is a least-privilege failure that needs remediation.

In this Free-tier build, access is enforced via direct user-to-role assignment; under P1, group-to-role assignment would be tested to confirm that membership of a security group (e.g. SG-Chefs) automatically grants the corresponding role.

MFA verification

Next, confirming MFA is actually enforced for every account, not just configured to look that way.

Test	Method	Expected result
MFA enforcement	With Security Defaults enabled, sign in as a test user for the first time	User is required to register for MFA before access is granted
MFA challenge	Sign in as the administrator account	Admin is challenged for MFA on sign-in
Enforcement coverage	Confirm Security Defaults applies tenant-wide	All users, not a subset, are subject to MFA

Signing in as Liam Carter for the first time triggered the MFA registration flow, confirming Security Defaults is enforcing MFA tenant-wide (see Figure 1).

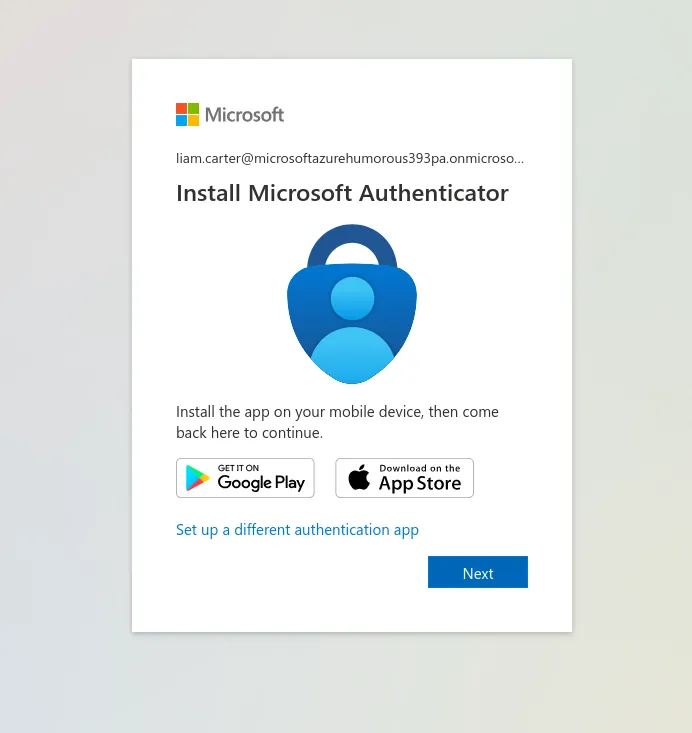

Figure 1: First sign-in as a test user triggers Microsoft Authenticator registration — Security Defaults enforcing MFA.

Security Defaults is an all-or-nothing control. In production, MFA would instead be validated through granular Conditional Access policies (P1) — for example, confirming the CEO and admin accounts are always challenged, and that risky sign-ins trigger additional verification.

Logging and monitoring

Last but not least: confirming the tenant actually captures the events needed to detect and investigate irregular activity.

Log location	Captures	Test
Entra ID → Sign-in logs	Successful and failed sign-ins, MFA results, location/device	Perform a successful sign-in and a deliberately failed one; confirm both appear with correct status
Entra ID → Audit logs	Role assignments, group membership changes, user attribute changes, app configuration changes	Assign a role or change an attribute; confirm the action is recorded with actor, target, and timestamp
Entra ID → Users → [user] → Sign-in logs	Per-user sign-in history	Review an individual account’s recent sign-ins

The sign-in logs captured the full range of outcomes — a successful sign-in, several failures (error 50126, incorrect password), and MFA interrupts (see Figure 2). The audit logs recorded user updates, security-info registration, password changes, and — critically — the Add app role assignment event tying a user to a VIP Foods role (see Figure 3). Together these confirm the tenant logs the events needed to detect irregular activity such as repeated failed sign-ins, unexpected role changes, or sign-ins from unusual locations, and would feed a SIEM in production.

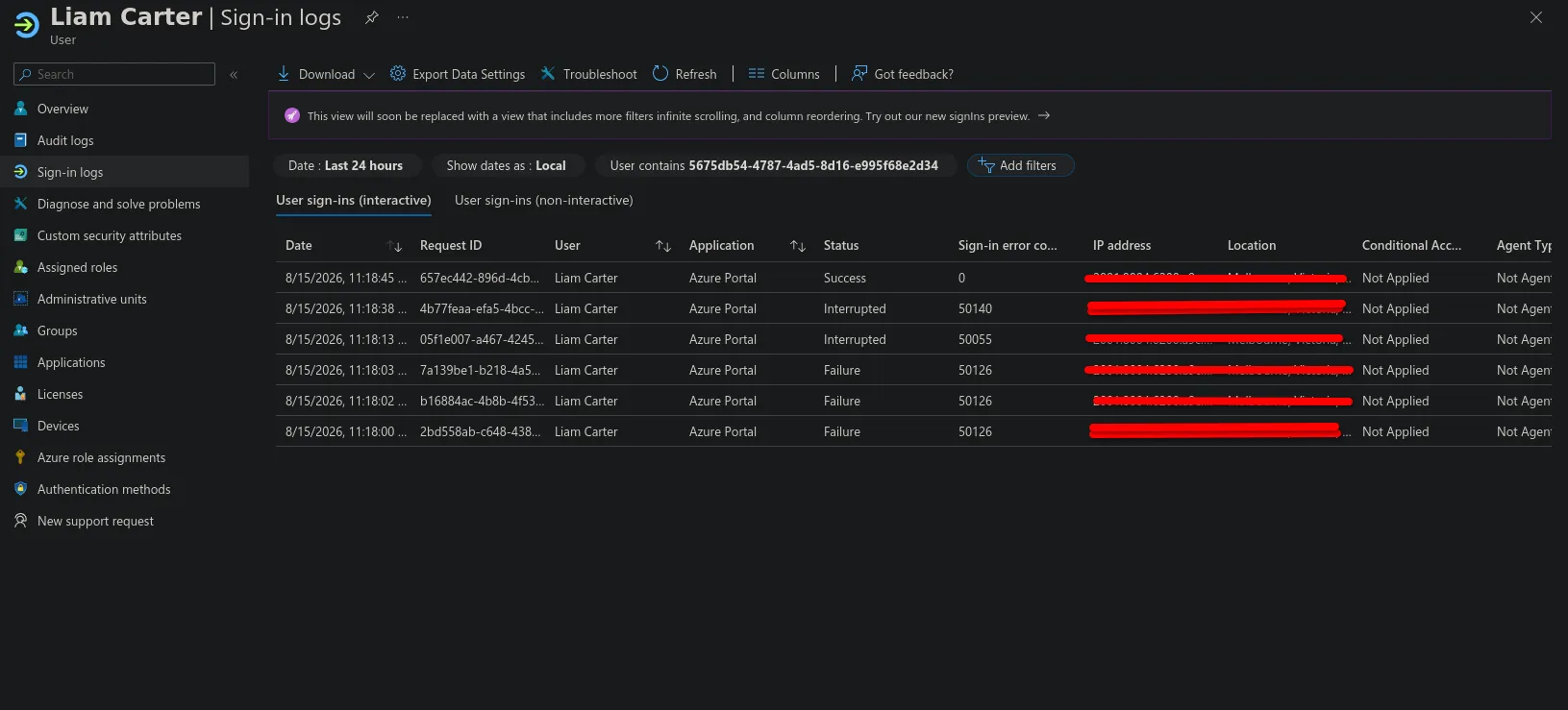

Figure 2: Sign-in logs — a success, several failed attempts (error 50126), and MFA interrupts. IP and location redacted.

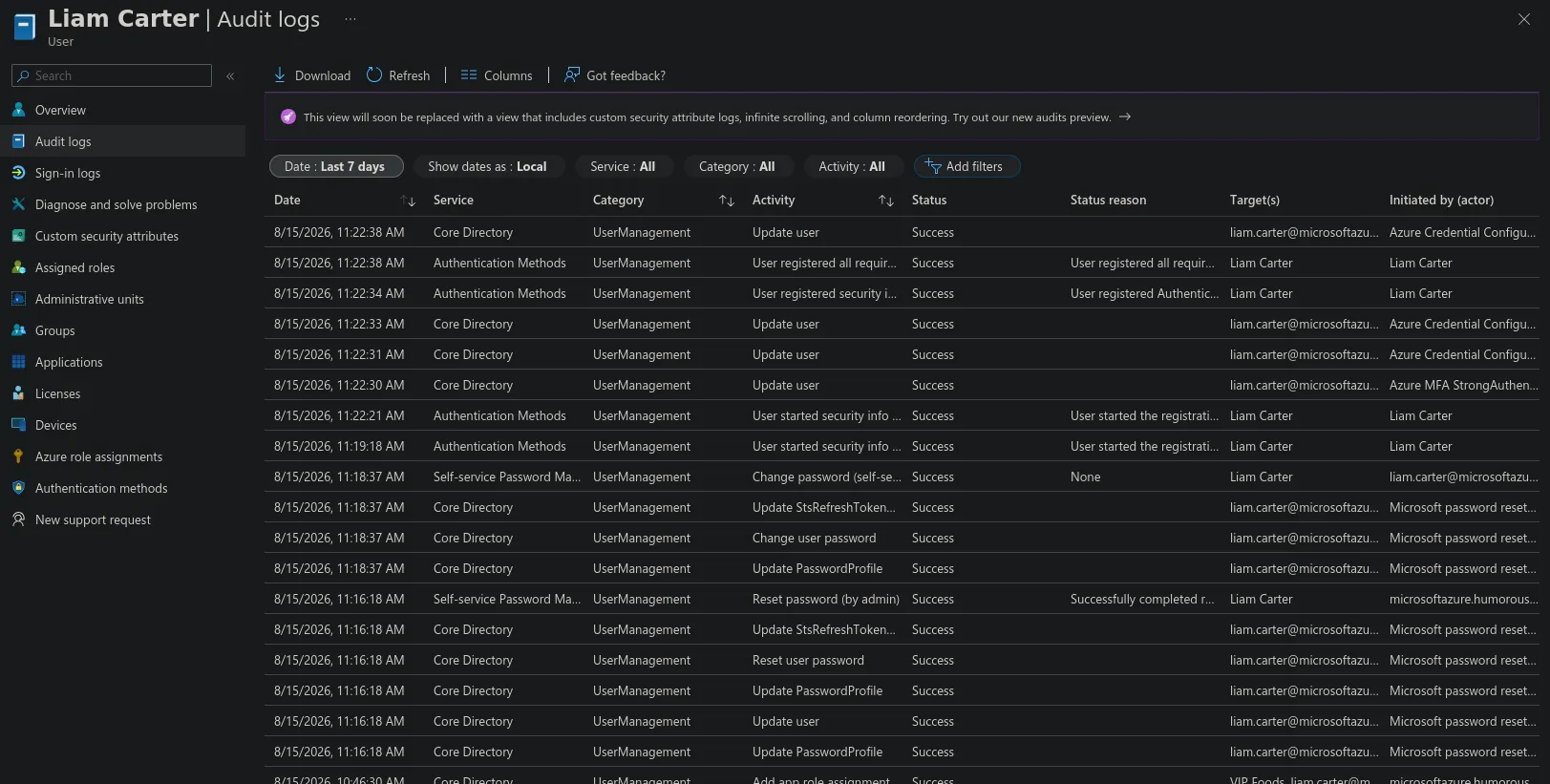

Figure 3: Audit logs — user updates, MFA registration, password changes, and an app role assignment to VIP Foods.

Documentation review

The final check: making sure the written proposal actually matches the deployed configuration, and that every step is recorded accurately enough to be useful later.

Check	Method
Stage 1 vs build	Cross-verify the documented network zones, user groups, and role model against the tenant’s groups and design intent
Stage 2 vs build	Confirm the tenant, user accounts, attributes, security groups, and Security Defaults match the documentation
Stage 3 vs build	Confirm the eight app roles, their values, and the user-to-role assignments match the documented role/permission model
Completeness	Confirm every configuration step is documented clearly enough to be reproduced or audited
Drift	Note any discrepancy between documentation and live state; update the documentation to reflect the true configuration

This review closes the loop: the documentation is only useful for future management and audits if it accurately reflects what was actually built.

This test plan validated the VIP Events identity solution end to end: authentication and role-claim delivery, account and attribute accuracy, correct role assignment, enforced least-privilege access including negative tests, MFA enforcement, and the logging needed to detect irregular activity — with a final documentation review confirming the proposal matches the live build. The negative tests are the core of it: they confirm the isolation designed across Stages 1–3 actively restricts out-of-scope access, not merely that in-scope access works. Live evidence was captured for MFA enforcement and for the sign-in and audit logs.

---

This is Stage 4 of a five-stage capstone. Stage 1 (company requirements), Stage 2 (Entra ID setup), and Stage 3 (roles and access) precede it; Stage 5 (policy implementation) follows — the final stage.
